We offer Online UV Curing Systems that are used in Offset Presses. These systems are available in various sizes: 10" to 40" and various configurations: 200 W/Inch lamp to 500 W/Inch with options of 1, 2, 3, 4 lamps. They are available with shutter for incorporation in Offset and available low/high pile for end delivery of Offset. Moreover, this UV system can be incorporated in the machine or we can attach with delivery of Offset.

We can customize UV Curing System as per customers desire. We install UV Curing on site at machine in different sizes and wattage. We are specialized to install Hot and Cold UV Curing systems on the Machine.

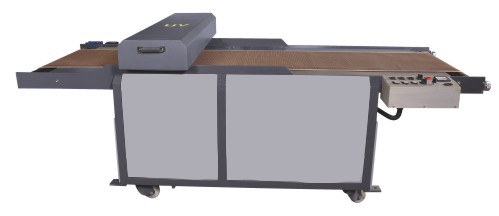

We offer Offline UV Curing systems that are basically used for drying inks and varnishes coated and printed by any kind of media. These are available from 4" to 72" width with the power range of 200 W/Inch to 500 W/Inch having lamp capacity of 1, 2, 3 lamps.

We design UV curing system as per customer specifications and needs. Our systems are CE certified and we keep on upgrading them regularly. Our systems are useful for screen, offset, rotogravure printing, flexo printing, dry offset printing, pad printing, roller coater, varnish machine, manual printing, inkjet, metal printing, shoe industry, PVC profile industry, PCB (printed Circuit boards), wood industry, metal industry, glass industry, electronic industry, automobile industry, helmet industry, paint industry, lacuering industry, filters industry, plastic industry, home appliances.

Advantage of UV Technologies :
The use of UV Technology offers many advantages for all print process, including the ability to print on non-absorbent materials. Few advantages are: Use of solvent free inks or varnish; Immediate further processing and extremely high chemical and abrasion resistance.

Specifications:

• Lamp hosing for Lamp

• Digital indicating for RPM (Speed)

• UV Lamp

• IT Lamp High quality reflector housing

• Efficient cooling systems with high pressure Blower

• Irradiator for UV Lamp

• Wire mesh Teflon coated conveyor Belt

• Vacuum Bed

   UV Curing Lamps

We offer UV Curing Lamps are used in automotive, electronic, industrial, medical and optical industries. These lamps are made of supreme quality of raw materials to ensure quality, reliability and durability. Our curing lamps provide clean, worker-friendly cures and are ideal for industrial UV bonding, coating, encapsulating, potting and sealing applications.

Standard UV Curing Lamps: These lamps, also called mercury arc lamps, are the workhorse of the light curing industry. They combine cure efficiency with design versatility and moderate cost. An electrode type medium pressure lamp consists of three major components:

• A quartz glass sleeve.

• Fill material, typically argon and precisely dosed amount of liquid mercury.

• Electrodes sealed into the end of the quartz sleeve.

A high voltage is applied to the lamp across the electrode terminals. The voltage field ionizes the argon and produces heat to vaporize the mercury, which creates a pressure of about two atmospheres. This pressure is needed to maintain a balance between the required high intensity while maintaining the spectral output essentially in the UV region. The mercury vapor arc, which is created, exhibits the unique property of high emission of light in the ultraviolet region of the spectrum. In particular, intense emission occurs in the 240-270 nm and 350-380 nm areas, which is where typical UV photoinitiators absorb. This intense light beyond the violet region of the visible spectrum has sufficient energy to interact with photoinitiators and cause their fragmentation, which initiates polymerization. Some visible light and infrared radiation are also generated.

We import these electrode type mercury vapor lamps in sizes ranging from a couple of inches to 135 inches in length and various power levels ranging from 100 Watts/inch to about 800 Watts/inch. The most popular lamps are in the 200-400 Watt/inch range.
